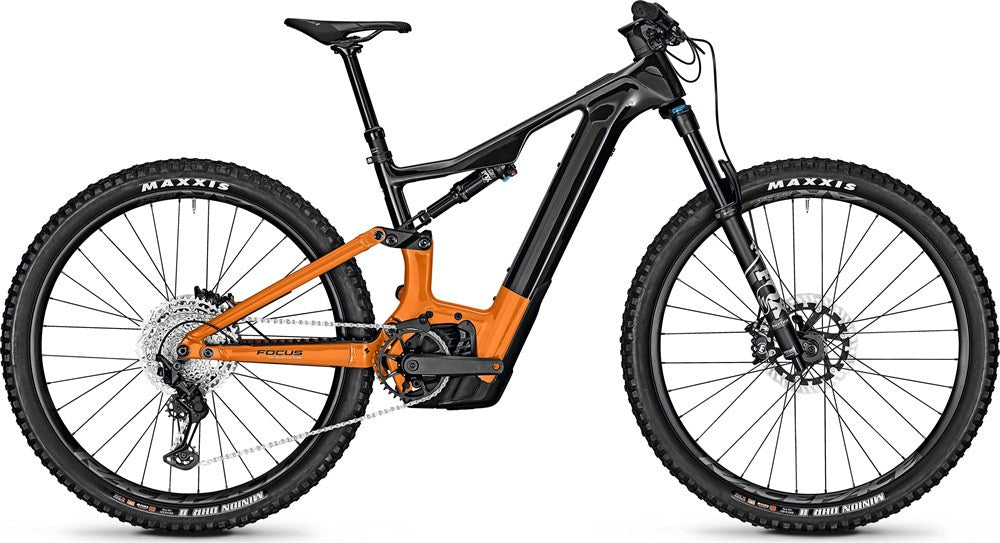

Focus F24 Jam2 8.8

Bosch Smart System with performance CX E-Drive, system controller with Kiox 300 Display and 750 WH battery.

160mm travel Fox 36 Rhythm suspension fork and 150mm F.O.L.D. Kinematics MIT Fox DPS rear shock.

Reliable and precise Shimano XT 1 x 12 shifting components and strong Magura MT5 brakes plus fully intergrated C.I.S. cable routing.

• Frame - Carbon front triangle, aluminium rear triangle, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
• Fork - FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake
• Travel of suspension fork - 160 mm
• Shock - FOX Float DPS, 210 / 55 mm, hardware: 25.0 x 8.0 mm, no Bushing
• Motor - Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
• Battery Watt - Hours - 750 Wh
• Battery ampere hours - 20,8 Ah
• Display - Bosch System Controller + Mini Remote + Kiox 300
• Shifter - Shimano Deore XT SL-M8100, 12-speed
• Rear Derailleur - Shimano Deore XT M8100, 12-speed
• Sproket - Shimano Deore CS-M6100, 12-speed
• Chain - Shimano Deore CN-M6100, 12-speed
• Crankset - Samox EC40 ISIS
• Transmission of drive - front: 36, rear: 10-51
• Bottom Bracket - Integrated in Drive Unit
• Handlebar - Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
• Stem - Focus C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
• Headset - Acros ZS56/ZS66 (ICR), Focus C.I.S. Integrated, 1.5/1.8" angle headset
• Saddle - Selle Italia X3
• Seatpost - Post Moderne dropper post PM-214, 34.9 mm
• Brake Caliper - Magura MT5, hydraulic disc brake
• Brake Lever - Magura MT5
• Brake - Disc
• Rims - RaceFace AR30 Offset
• Rear Hub - Novatec D462, 12x148 mm
• Front Hub - Novatec D041, 15x110 mm
• Tyres - Maxxis Minion DHR II, 2.6, 66-622,Maxxis Minion DHR II, 2.6, 66-622, EXO+
• Gears - 12
• Bike weight including battery in KG - 24
• Size - 42, 44, 46, 39
