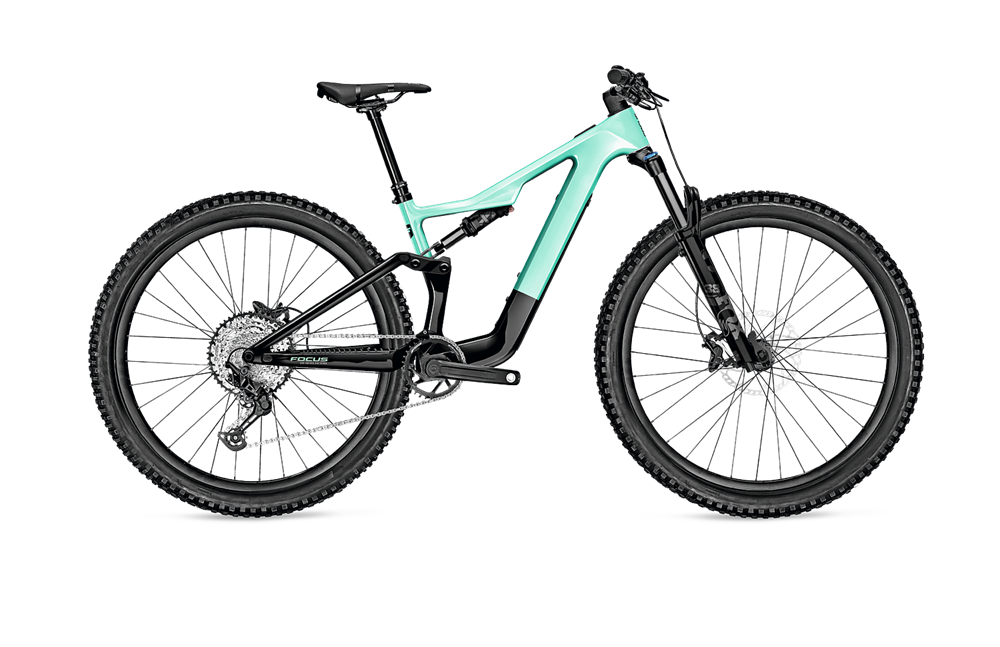

Focus F24 Jam2 SL 8.7

Light e-mountain bike thanks to a lightweight carbon frame and the Fazua Ride 60 e-drive with 60 Nm and 430 Wh battery

160 mm travel DVO Diamond e-bike suspension fork and 150 mm RockShox Deluxe Select+ rear shock with F.O.L.D. kinematics

Fully integrated C.I.S. cable routing with trail-ready SRAM NX Eagle 1x12 shifting

Carbon frame with Fazua Ride 60 e-drive & 430 Wh battery

160 mm DVO Diamond fork & 150 mm RockShox Deluxe Select+ shock

Sram NX Eagle 1x12

Brake

• 200

Pedal

• MTB
• With reflector

Frame size

• S,M,L,XL
• 39,42,44,46

Drive train

• Chain

Max total weight

• 135 kg

Frame

• Carbon technology frame
• 150mm F.O.L.D. GEN3 kinematics
• 148x12 thru axle
• Internal cable routing
• Post Mount 180 mm

Fork

• DVO Diamond E3
• 110x15 mm
• 44 mm rake

Handlebar

• Aluminium
• 800 mm
• Rise: 30 mm
• Backsweep: 9°

Saddle

• fi'zi:k Taiga

Seat post

• Post Moderne dropper post PM-MT171
• 31.6 mm

Stem

• Focus C.I.S. integrated
• 50 mm
• 0°
• 35 mm
• Aluminium

Brakes

• SRAM GUIDE T

Crank set

• Samox EC40 ISIS

Sprocket

• Sram NX Eagle
• 12-speed

Transmission

• Front: 32
• Rear: 11-50

Wheel rims

• RaceFace AR30 Offset

Brake lever

• SRAM GUIDE T

Battery

• 430

Color

• Poolgreen / Carbon glossy
• Warmgrey / Carbon glossy

Travel

• 160 mm
• 150 mm

Hub

• Novatec D041, 15x110 mm thru axle,Novatec D041, 15x110 mm
• Novatec D462, 12x148 mm

Grip

• FOCUS Locker SL

Rear derailleur

• SRAM NX Eagle
• 12-speed

Tire

• Maxxis Minion DHF, EXO, 63-622

Bottom bracket

• Integrated in Drive Unit

Shift / Brake lever

• Sram GUIDE T
• Sram SX Eagle, 12-speed

Spoke

• Niro, black

Chain

• Sram SX Eagle
• 12-speed
